How Smart Glass Works

How does smart glass work? A layer of liquid crystal droplets, held in a clear polymer between two transparent conductive coatings, sits inside the glass. With no power the droplets point in random directions and scatter light, so the glass looks frosted. Apply a low voltage and they line up, light passes straight through, and the glass turns clear — in under a second, with no moving parts.

Smart glass — switchable glass, also called privacy glass — does one thing: it changes from clear to frosted on demand. The technology behind it is PDLC: Polymer-Dispersed Liquid Crystal. Press play to see it happen, then read what is going on inside the layer and what a real installation needs.

The science, in plain English

Inside every smart glass panel (or smart film) is a layer thinner than a sheet of paper, made of two materials blended together:

• Liquid crystals — rod-shaped molecules that flow like a liquid but can line up like a crystal.
• A clear polymer — a transparent plastic that holds millions of tiny liquid-crystal droplets in place.

That PDLC layer sits between two transparent conductive coatings (a material called ITO — indium tin oxide), which carry an electric current across the layer without blocking the view. The whole stack is sealed with protective film and either laminated into glass or applied to existing glass as film.

Power off → the crystals scatter → frosted

With no electricity, the liquid-crystal molecules inside each droplet point in random directions. Their optical properties don't match the surrounding polymer, so light hitting all those boundaries scatters every which way. The result looks milky and private — but it still passes daylight; it just diffuses it.

Power on → the crystals align → clear

Apply a low-voltage current — typically 60V AC — and the electric field across the ITO coatings forces every liquid-crystal molecule to align in the same direction. Now the droplets and the polymer bend light identically, so it travels straight through and the glass turns clear. Because aligning molecules in a field is nearly instantaneous, the change happens in under a quarter second.

That's the whole trick: current orders the crystals (clear); no current lets them scatter (frosted) — no moving parts, nothing mechanical to fail.

What it actually needs: power and wiring, in plain English

The science is only half the answer. The practical half — the part to picture in your own home or office — is that smart glass is an electrical product. It uses very little power, but it does get wired. Every system has the same four parts:

1. The glass or film itself. Two thin wire leads exit one edge of each panel, connected to the conductive coatings through a strip called a busbar (factory-applied — nothing you handle).
2. Low-voltage wiring. Those leads run concealed inside the window frame, wall, or ceiling — after installation you see glass and a switch, no visible wires.
3. A transformer. Your wall outlet delivers 110–120V; PDLC runs on 48–65V AC, so a small transformer steps the power down. It hides in a nearby cabinet, closet, wall cavity, or ceiling, and one transformer drives each zone of panels.
4. A control. Wall switch, wireless remote, phone app, timer, or voice — and full smart-home integration with Alexa, Google Home, Lutron, Savant, Crestron, and Control4.

What that means for your space

• You need power nearby, and that's about it. A standard outlet within reach of the transformer location is usually all the electrical infrastructure required. Our team runs and conceals the low-voltage side during installation — for most retrofits you don't need to hire an electrician or open walls.
• Power draw is tiny: 5 watts per square meter or less, and only while the glass is clear. A typical window uses about as much electricity as one LED bulb — cents per month — and frosted mode uses none at all.
• A power outage leaves you private, not exposed. Frosted is the unpowered default state, so losing power means the glass simply goes frosted until power returns.
• New construction is even cleaner: wiring goes in with the framing, completely invisible. For retrofit film, leads tuck into the existing frame or trim.

The other specifics

• UV protection: the layer blocks the large majority of UV in both states, helping protect floors, furniture, and art.
• Speed: under a second — far faster than electrochromic "tinting" glass, which can take several minutes to change.

How does privacy glass work?

Exactly like this — because privacy glass is switchable PDLC glass under a different name. "Privacy glass" is what people call the product when the frosted state is the point: a bathroom window, a glass office front, a street-facing door. Inside is the same layer described above — unpowered, the crystals scatter light and the privacy glass sits frosted; powered, they align and it goes clear in under a second. There is no separate privacy-glass technology to compare against; frosted-on-demand is the product.

One detail makes privacy glass genuinely good at its job: frosted is the unpowered, resting state, so it holds privacy for free and draws its trickle of power only while you keep the pane clear. If you arrived here looking for glass that turns opaque with a switch, that guide walks the same product from the buyer's side — which panes qualify, what one window costs, and where it earns its keep.

What is smart glass — and what is a smart window?

Smart glass is glass that switches from clear to frosted on demand. A thin electric layer — the PDLC described above — sits inside or on the pane: with power it's transparent like any window, without power it's an even milky frost you can't see through. A smart window is simply a window fitted with that glass, either a laminated smart glass panel installed like regular glazing or smart film retrofitted onto the pane already in the frame. Smart glass, switchable glass, privacy glass, smart windows — different names, one product, and everything on this page applies to all of them.

Smart glass vs. smart film — same science

Both use the identical PDLC layer; the only difference is how it's installed. Smart film — switchable PDLC film — is applied to the glass you already have (a retrofit, usually done in a day). Smart glass is a new laminated panel with the layer built in, for new construction and remodels. Either way, the switching works exactly the same — see what smart glass costs.

Where it goes

Where people put smart glass.

One material, one switch: a clear view when you want it, instant privacy when you don’t. The rooms our customers ask for it most:

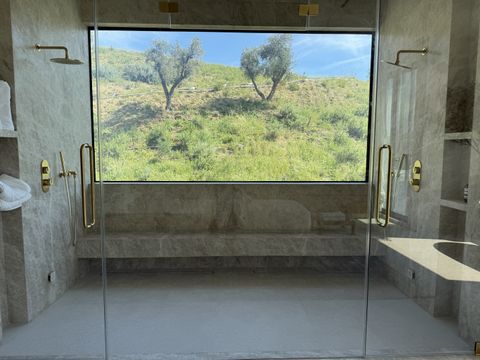

Bathrooms & showers

Keep the floor-to-ceiling glass and the view — frost it the moment you step in. No curtains, no blinds, no mildew.

Offices & conference rooms

An open, light-filled glass room that frosts for a private meeting or a confidential call — then opens back up.

Living rooms & view walls

Frame the garden or the city by day, then dim the whole wall to private for movie night — one tap, no hardware on the glass.

Bedrooms & ensuites

Wake up to the view, sleep behind a frosted wall. Smart glass doubles as the blackout layer — and stays private if the power drops.

Medical, dental & med-spa

An open, modern practice that turns each treatment room private on demand — wipe-clean glass instead of fabric, for real hygiene.

Storefronts, retail & restaurants

Show the window display during the day, frost it after hours or for a private event — and use the clear wall as a projection screen.

Get a free quote for your space →

See it in a real install

Every project in our portfolio is this same technology in the wild — Beverly Hills medical suites, Pasadena bathrooms, Newport Beach offices. When you're ready for a number, the smart glass cost guide has the real per-square-foot pricing — then send us your specs and we'll come back with a written estimate.
