PDLC Technology Explained: The Science of Switchable Privacy Glass
Discover the advanced engineering behind Polymer Dispersed Liquid Crystal (PDLC) technology. Learn how switchable privacy film works at a molecular level to provide instant transparency and UV protection for modern architecture.
Polymer Dispersed Liquid Crystal (PDLC) technology represents a pinnacle of modern materials science, offering a dynamic solution to the age-old requirement for privacy without sacrificing natural light. While the visual effect of glass turning from opaque to clear in a fraction of a second seems like magic, it is governed by rigorous principles of physics and electrical engineering. For architects, developers, and high-end homeowners, understanding the technical specifications of PDLC is essential for successful integration into smart building systems.
At its core, PDLC is an active privacy solution. Unlike passive films or traditional window treatments, it requires an external electrical stimulus to change its state. This functionality makes it a cornerstone of "smart" glass applications, where functionality meets high-performance engineering.
What is PDLC technology and how does it function?
PDLC stands for Polymer Dispersed Liquid Crystal. To understand its function, you must look at the material as a composite. It consists of microscopic droplets of liquid crystals suspended within a specialized polymer matrix. This matrix is sandwiched between two layers of transparent conductive film, usually Indium Tin Oxide (ITO), which are then bonded to a PET (polyethylene terephthalate) substrate.
When you invest in professional smart film installation, you are essentially installing a thin-film capacitor that covers your glass surface. In its natural, unpowered state, the liquid crystal molecules are oriented randomly. Because these crystals have a different refractive index than the surrounding polymer, light is scattered in every direction as it attempts to pass through the film. This scattering is what creates the "frosted" or opaque appearance. It allows approximately 60-70% of ambient light to pass through, maintaining brightness, but it completely obscures visibility, providing total privacy.
How do liquid crystals react to electrical current?
The transition from opaque to transparent occurs when an electrical field is applied across the conductive ITO layers. Liquid crystals are polar molecules; they respond to the presence of an electric field by physically rotating. When the power is switched on, the crystals align themselves parallel to the electric field.
In this aligned state, the refractive index of the liquid crystals matches the refractive index of the polymer matrix. Because the indices are synchronized, light no longer encounters a boundary that causes scattering. Instead, the light waves pass straight through the material as if it were standard clear glass. This transition happens at incredible speeds, typically under 100 milliseconds, allowing for an instantaneous change in the environment’s privacy level. You can view completed installations to see how this transition effectively manages space in high-stakes environments.
Alt Text: A modern office glass partition transitioning from frosted to clear using PDLC smart film for instant meeting room privacy.
What are the physical components of a PDLC film layer?
A high-quality PDLC film is a complex multi-layer laminate. Engineering tolerances must be precise to ensure long-term durability and optical clarity. The standard "sandwich" construction includes:
- Outer PET Protective Layers: These provide the structural integrity for the film and protect the internal components from environmental factors.
- Conductive ITO Layers: Indium Tin Oxide is used because it is one of the few materials that is both electrically conductive and optically transparent. These layers carry the voltage across the entire surface of the film.
- The PDLC Core: This is the active layer containing the polymer and liquid crystal droplets. The density and size of these droplets are carefully controlled during manufacturing to ensure uniform opacity.
- Adhesive Layer: For retrofit applications (Smart Film), a specialized optical clear adhesive (OCA) is used to bond the laminate to existing glass.
The total thickness of the film is typically around 0.5mm to 0.8mm. When integrated into custom smart glass systems, this film is laminated between two panes of tempered glass using EVA (Ethylene Vinyl Acetate) interlayers, creating a permanent, moisture-resistant architectural feature.
What electrical requirements are necessary for switchable glass?
PDLC technology operates on Alternating Current (AC). Standard operating voltages typically range from 48V AC to 110V AC, depending on the specific film formulation and the surface area of the installation. Direct Current (DC) cannot be used, as it would cause ion migration within the liquid crystal layer, leading to permanent "burn-in" or ghosting and eventual failure of the film.
To facilitate this, every installation requires a dedicated transformer or power supply unit (PSU). These transformers step down standard building voltage to the required operating voltage for the film. In a typical Los Angeles commercial installation, these power supplies are hidden in the ceiling plenum or integrated into the AV rack. The power consumption is remarkably low, generally averaging around 3 to 5 watts per square meter when in the transparent (ON) state. When the glass is opaque (OFF), it consumes zero power.

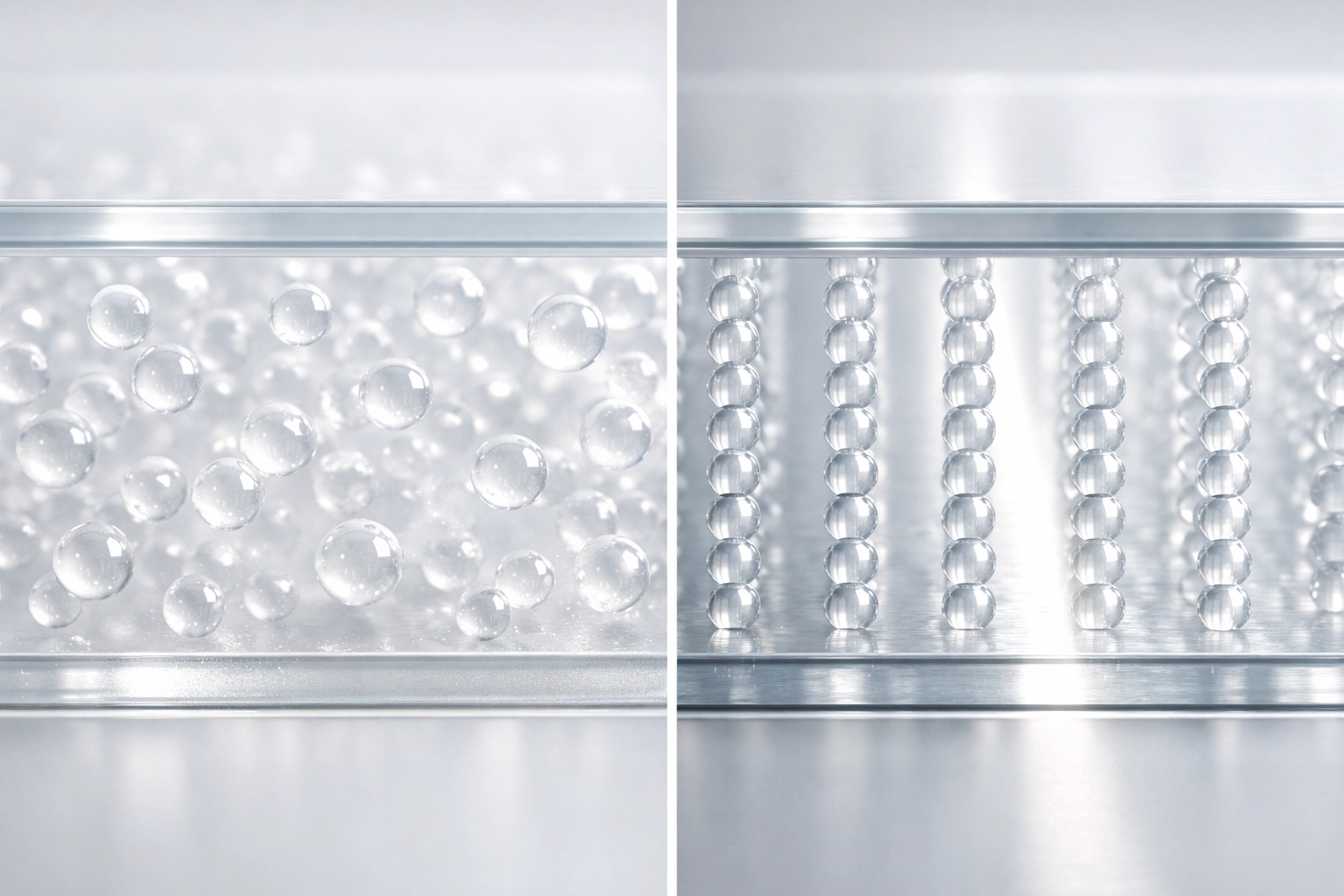

Alt Text: A technical diagram showing the molecular alignment of liquid crystals in PDLC film during ON and OFF states.
How does PDLC technology improve energy efficiency and UV protection?
Beyond privacy, PDLC technology serves as a high-performance barrier against solar radiation. One of the most significant technical advantages of Smart View Smart Film is its ability to block 99% of harmful Ultraviolet (UV) rays. UV radiation is the primary cause of fading in luxury furniture, hardwood floors, and artwork. By reflecting and absorbing these wavelengths, the film acts as a permanent sunscreen for your interior.
Furthermore, PDLC contributes to energy efficiency through the management of Infrared (IR) light and Solar Heat Gain. In its frosted state, the film reflects a significant portion of IR radiation, which is responsible for heat buildup inside a building. By reducing the solar heat gain coefficient (SHGC), PDLC film helps lower the load on HVAC systems, particularly in sun-drenched regions like Southern California. This thermal regulation capability ensures that large glass facades can remain an aesthetic asset without becoming a thermal liability.

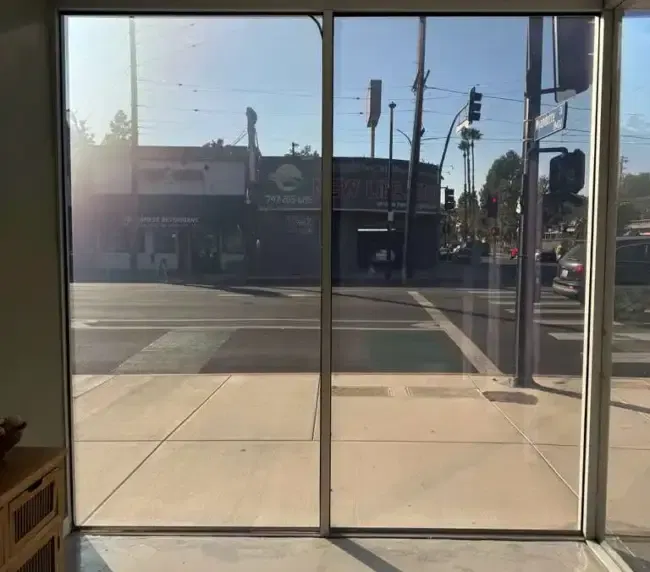

Alt Text: Comparison of standard glass versus glass treated with smart film, highlighting the reduction in glare and sun exposure.
Why is the refractive index critical to transparency?
The "magic" of PDLC is entirely dependent on a concept called "refractive index matching." Every transparent material has a refractive index, which is a measure of how much it bends light. If light travels through two materials with the same refractive index, it doesn't bend or scatter; it continues in a straight line.
In the PDLC matrix, the polymer has a fixed refractive index. The liquid crystals, however, have what is known as "birefringence", their refractive index changes based on their orientation. In the "OFF" state, the light hits the liquid crystals at an angle where the indices do not match, causing the light to bounce off the droplets. This is called Mie scattering. In the "ON" state, the electrical field aligns the crystals so that the index of the crystals seen by the incoming light matches the index of the polymer perfectly. This engineering precision is why high-quality films appear much clearer (with lower haze levels) than cheaper alternatives.
FAQ
How long does PDLC film last?
When installed correctly by professionals, PDLC film is rated for over 80 million switches and has a functional lifespan exceeding 10 to 15 years. The durability is further enhanced when the film is laminated as smart glass, protecting it from physical wear and environmental moisture.
Does the film require a lot of electricity?
No. The power consumption is minimal. A large conference room wall might use less power than a standard LED light bulb. It is an energy-efficient solution for large-scale commercial applications.
Can PDLC technology be controlled by a smart home system?
Yes. The transformers used for PDLC can be integrated with Lutron, Savant, Crestron, and other automation platforms. This allows you to control privacy via voice commands, mobile apps, or automated schedules. For more details on integration, you can read our previous article on Santa Monica installations.
Is it possible to install this on curved glass?
Yes, PDLC film is flexible and can be precision-cut to fit curved windows or glass partitions. The wiring is carefully routed through the frame to maintain a seamless aesthetic.
What factors influence the cost of a PDLC project?
The total investment for a project depends on several factors, including the total square footage, the complexity of the wiring and electrical integration, whether it is a retrofit film or new smart glass, and the specific control systems required. For an accurate assessment, it is best to schedule a pricing consultation.

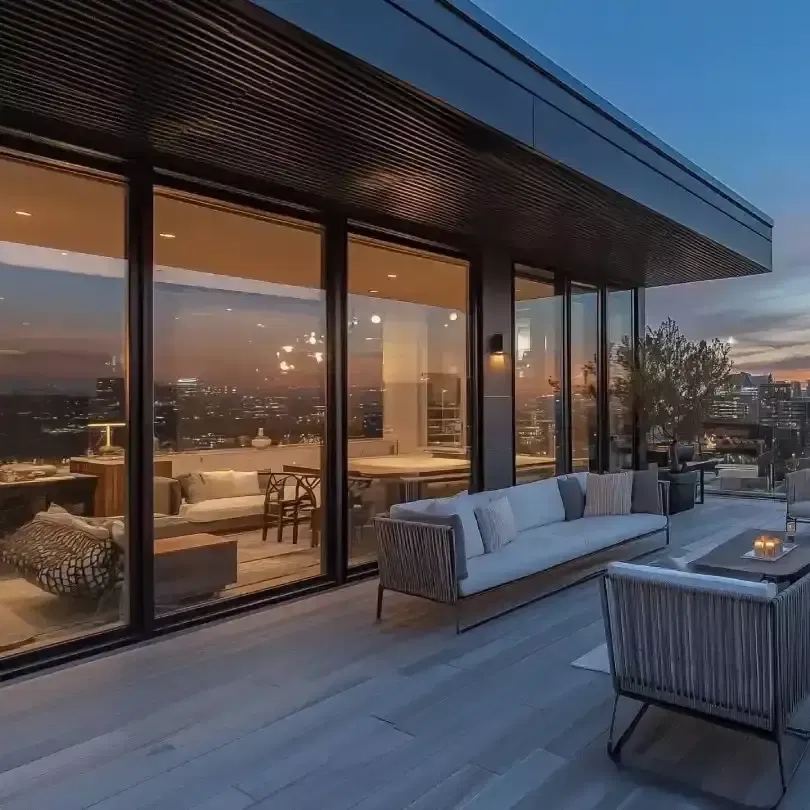

Alt Text: A luxury Los Angeles residence featuring floor-to-ceiling smart glass that provides privacy while maintaining a view of the city skyline.
Upgrade Your Space with Precision Engineering
PDLC technology is more than a luxury: it is a sophisticated tool for spatial management and environmental control. Whether you are designing a high-density office environment or a private luxury estate, the science of switchable glass offers unparalleled flexibility. By understanding the electrical and physical principles behind the film, you can better appreciate the value it brings to modern architecture.
